Electric Oven Hinge Electric Oven Door Hinge 010

Electric Oven Hinge » Electric Oven Door Hinge 010

Pictures available of Electric Oven Hinge:

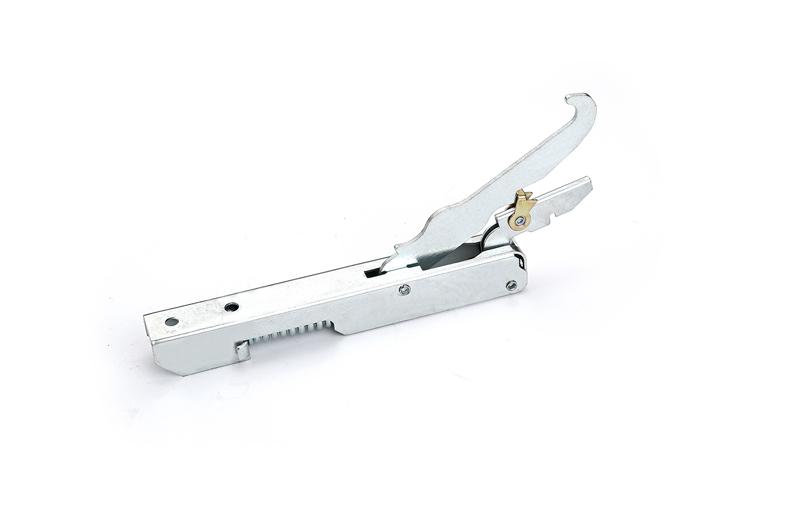

Electric Oven Door Hinge 010

Electric Oven Hinge

Single-fulcrum with long arm oven hinge
Scope of application
1. Performance: close door with large mutation angle, and with excellent sealing performance;
2. Load capacity: 2.5-11KGS, the maximum distance from the rotating axis to the center of gravity of the door is 230mm, and it can stay at any angle within 20~87 degrees when the door is opening;
3. Oven door size: thickness 45-90mm; heightness 200-550mm;
4. Working temperature: - 20 ℃ ~ 115 ℃ (special requirements can be customized);
5. Short-term static load: 30~34KGS (oven door body center);
Note: we can also negotiate and develop according to customers’ special requirements.
